S SERIES ROTARY HYDRAULIC CYLINDER

Brand Name : NTH

Model Number : S-65,S-80,S-100,S-125,S-150,S-200,

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : S ROTARY HYDRAULIC CYLINDER

Usage : Driving chucks working

Feature : Light/High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is available

Contact Now

S ROTARY HYDRAULIC CYLINDER

Brand:NTH

The rotary valve and cylinder body,all made of special light alloy,light-weight.
Through unique design,the rotary valve enables the inside bearing to get sufficient lubricating and cooling and endure high-speed rotary for longer service life.

The drain port should be independently connected to oil tank to avoid back pressure.

S SERIES ROTARY HYDRAULIC CYLINDER

Size unit: mm

Spec Model	Piston area cm2 Extend	Piston area cm2 Retract	Piston stroke mm	Max RPM	Max.Operating Pressure Mpa(kgf/cm2)	I kg*m2	Weight kg
S-65	31	27.9	15	6000	3.5(35)	0.01	2.9
S-80	47.7	42.8	15	6000	3.5(35)	0.01	3.4
S-100	75.4	70.5	20	5500	3.5(35)	0.04	4.9
S-125	119.6	112.5	25	5500	3.5(35)	0.08	6.8
S-150	173.6	157.7	30	4000	4.0(40)	0.18	11.5
S-200	310	286.3	35	4000	4.0(40)	0.38	20.4

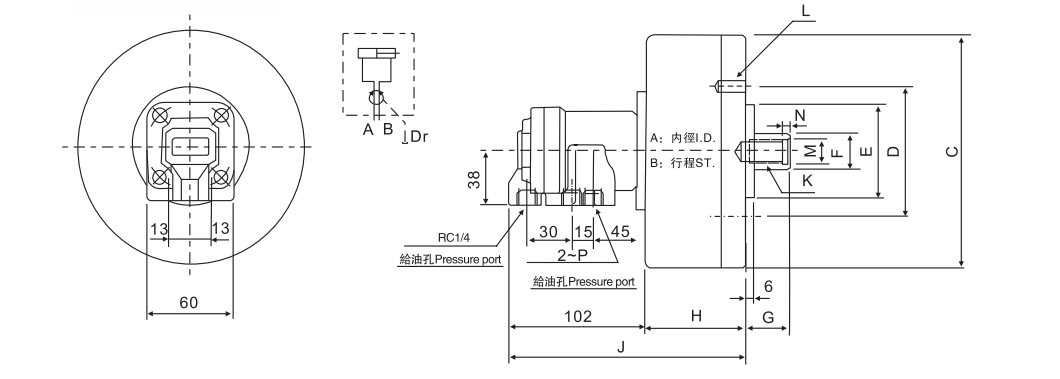

Spec Model	A	B	C	D	E H7	F	G Max	G Min	H	J	K	L	M H8	N	P
S-65	65	15	98	80	60	22	45	30	74	175	M12×30	6~M8×16	-	4	RC3/8
S-80	80	15	112	90	65	25	45	30	74	175	M16×30	6~M8×16	-	4	RC3/8
S-100	100	20	135	100	80	25	45	25	89	190	M20×35 (M16×30)	6~M10×20	-	4	RC3/8
S-125	125	25	160	130	110	30	50	25	96	197	M24×44 (M20×35)	6~M12×20	-	4	RC3/8
S-150	150	30	190	130	110	45	55	25	105	206	M30×45	12~M12×24	31	5	RC1/2
S-200	200	35	245	145	120	55	70	35	130	231	M36×60	12~M16×30	37	5	RC1/2

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:S Series.pdf
