SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE

Brand Name : NTH

Model Number : SLAN-E150,SLAN-E200K,SLAN-E250

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE

Usage : Driving chucks working

Feature : Light/High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is available

Contact Now

SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE

Brand:NTH

For short from,lightc weight and high speed rotary cylinder.To allow compressed air to be feed from the rear end of the distributor through the rotating union.suitable for vertical lathe.
Built-in safety check valves,pressure relief valves and proximity seneor.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connectde to oil tank to avoid back pressure.
When used,a little oil mist should be contained.

SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE

Size unit: mm

Spec Model	Piston area cm2 Extend	Piston area cm2 Retract	Piston stroke mm	Max RPM
SLAN-E150	174.4	160.8	30	5500
SLAN-E200K	292.4	274.9	35	4000
SLAN-E200K	292.4	265.4	50	4000
SLAN-E250	465.2	438.2	60	2000

Spec Model	Max.Operating Pressure Mpa(kgf/cm2)	Air connection Max.pressure Mpa(kgf/cm2)	I kg*m2	Weight kg
SLAN-E150	4.0(40)	0.8(8)	0.06	14.9
SLAN-E200K	4.0(40)	0.8(8)	0.19	29.1
SLAN-E200K	5.0(50)	0.8(8)	0.21	30.4
SLAN-E250	5.0(50)	0.8(8)	0.43	47.2

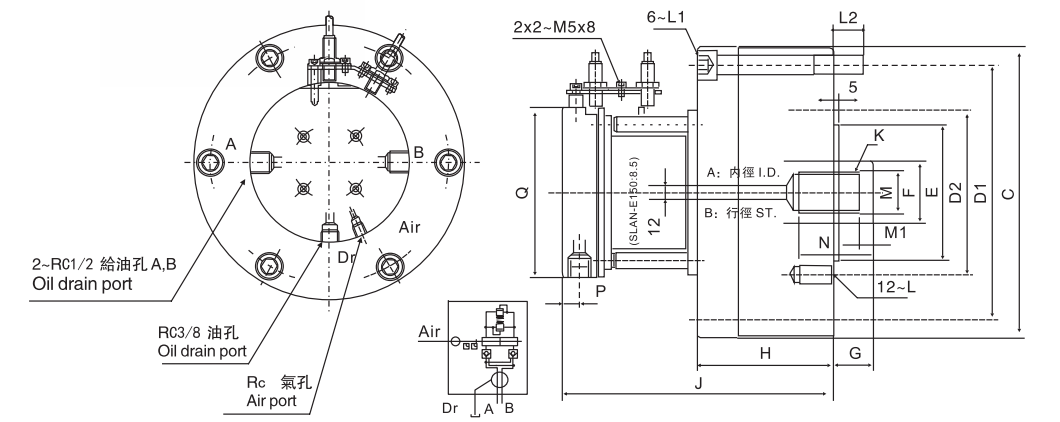

Spec Model	A	B	C	D1	D2	E H7	F	G Max	G Min	H
SLAN-E150	150	30	205	180	130	110	45	60	30	99
SLAN-E200K	195	35	257	225	145	120	55	73	38	120
SLAN-E200K	195	50	257	225	170	125	65	80	30	135
SLAN-E250	245	60	307	275	220	160	65	85	25	165

Spec Model	J	K	L	L1	L2	M H8	M1	N	P	Q
SLAN-E150	177.5	M30×3.5	M12×24	M12×105	18.5	31	10	50	12.5	114
SLAN-E200K	239	M36×4.0	M16×30	M16×130	27	37	12	65	15	150
SLAN-E200K	254	M42×3.0	M16×30	M16×145	27	45	12	65	15	150
SLAN-E250	280	M42×3.0	M20×35	M16×175	28	45	12	65	15	150

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:SLANE Series.pdf
